Translucent natural stone sheets combine the authentic texture of real stone with architectural lighting. When light passes through the stone from behind, its natural colour, pattern and depth become more visible, allowing the surface to become part of the lighting design.
The final result depends on more than the stone itself. The LED type and layout, distance between the light source and stone, substrate material, diffusion layer, colour temperature and installation quality all influence the brightness, colour and uniformity of the finished surface.
This guide explains the typical structure and installation considerations for Nalexible Translucent Natural Stone Sheets. It is intended to support early design discussions between architects, interior designers, lighting consultants, fabricators and installers.

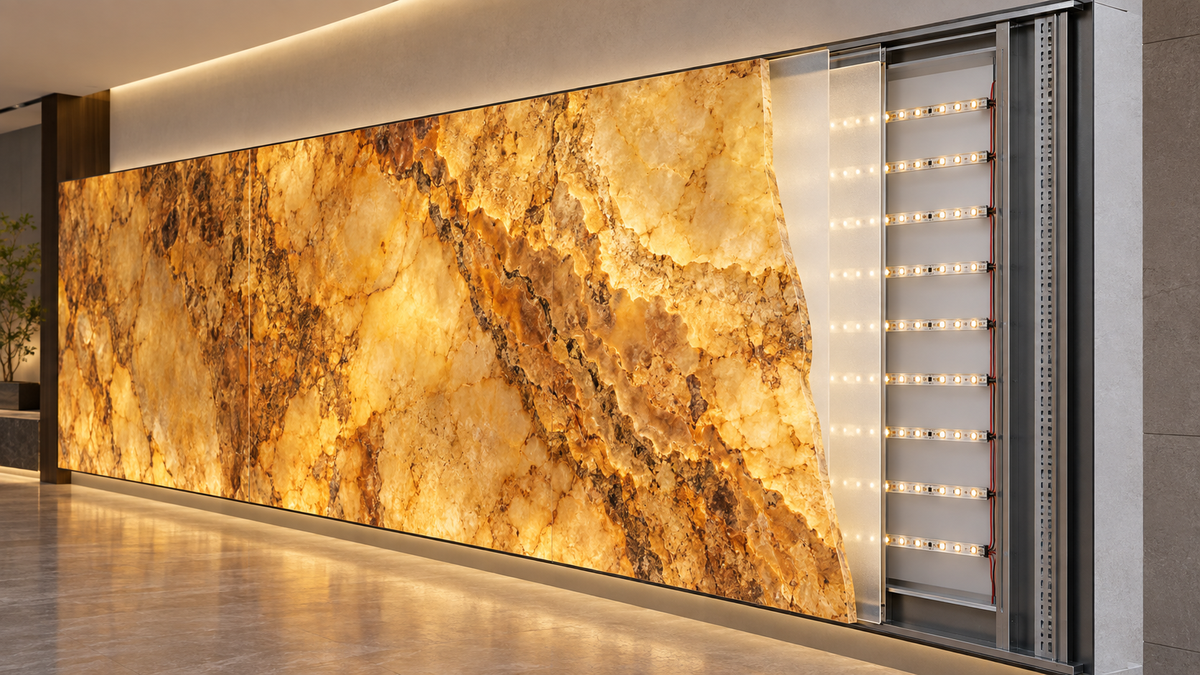

What Does a Backlit Natural Stone System Include?
A typical custom backlit natural stone system may include:
- A wall frame or lightbox structure
- Standard LED strips or diffuse-reflection LED lighting
- Power supplies and electrical wiring
- A tempered glass or acrylic substrate
- A compatible transparent structural adhesive
- Translucent natural stone sheets
- Edge finishing and access for future maintenance
The LED lighting is generally installed on the wall or at the back of the lightbox. After the electrical system has been connected and tested, a glass or acrylic substrate is installed in front of the light source. The translucent natural stone sheet is then bonded to the substrate.
Although the stone sheet itself is lightweight, the complete system still requires a stable, flat and appropriately engineered substrate.
Should You Use Tempered Glass or Acrylic?
The substrate should be selected according to the size, shape, impact requirements and construction conditions of the project.
Tempered Glass for Flat Surfaces
Tempered glass is generally suitable for flat walls and lightboxes without complex forms.
Its advantages include:
- Good strength and surface stability
- A flat and consistent bonding surface
- Relatively economical construction for standard flat applications
For curved or irregular forms, custom glass can be more expensive and may offer less fabrication flexibility.
Acrylic for Curved and Irregular Forms
Acrylic can be considered for curved walls, irregular shapes and structures that require more fabrication flexibility.
Its advantages include:
- Good formability
- Easier cutting and fabrication
- Greater suitability for curved and customised structures
- The ability to select an appropriate thickness for the required impact resistance
Custom acrylic substrates may cost more than standard flat tempered glass. The final substrate thickness must be determined according to the overall panel size, fixing method, structural strength and impact requirements—not only the weight of the stone.
How Much Space Is Required Between the LEDs and Stone?
The distance between the light source and the stone has a direct effect on lighting uniformity.
If the distance is too small, individual LED points may become visible through the stone, producing hotspots, bright areas or uneven illumination. Increasing the distance can improve diffusion, although it also increases the required lightbox depth.
Standard LED Strips
When standard LED strips are used, an indicative distance of approximately 150 mm or more between the light source and stone is recommended.
This additional space allows the light to spread before reaching the stone surface, helping to reduce visible LED points and localised hotspots.
Diffuse-Reflection LED Lighting
With diffuse-reflection LED lighting, the arrangement can be customised to suit the project dimensions. Depending on the LED system and stone, the distance between the light source and stone may be reduced to approximately 50 mm.
These figures are indicative rather than universal installation requirements. The final distance must be tested according to:
- The selected stone and its level of translucency
- The brightness and density of the LEDs
- The dimensions of the lightbox
- The substrate material
- The diffusion layer
- The required lighting level
- The ambient lighting conditions
Before full installation, a lighting mock-up should be produced using the actual stone, LED system, substrate and proposed lightbox structure.
How Can Visible LED Hotspots Be Reduced?
If clear glass does not provide sufficient light diffusion, frosted glass or another tested diffusion layer may help distribute the LED light more evenly.
A diffusion layer can reduce visible LED points, localised brightness and uneven exposure across the stone. However, it may also reduce the total amount of light reaching the surface.
The LED brightness, LED density, lightbox depth, substrate and diffusion layer should therefore be tested as one complete system rather than adjusted independently.
Choosing the Right Colour Temperature
Colour temperature can significantly change the way translucent natural stone appears.
Warm Light: 2500K–3000K
Warm lighting can strengthen the appearance of gold, brown, red and warm-grey stone tones. It is often suitable for:
- Hotel lobbies
- Bars and restaurants
- Clubs and lounges
- Reception areas
- Commercial interiors requiring a warmer atmosphere
Neutral Light: 4000K–4500K
Neutral lighting can provide a more balanced representation of the stone’s natural colour and texture. It may suit:
- Commercial display areas
- Retail interiors
- Reception counters
- Office and public spaces
- Projects seeking a more neutral material appearance
Cool Light: 5000K and Above
Cool lighting can create a brighter and clearer effect, particularly with white, grey or cool-toned stone. It may suit contemporary interiors, although it can also change the appearance of naturally warm-coloured stone.
The colour temperature should always be tested with the actual project stone. The same LED colour temperature can produce different results through different stone colours and textures.
What Should Be Checked Before Installation?
Stone layout and lighting performance should be reviewed before installation begins.
Important checks include:
- Natural colour and texture variation between sheets
- Differences in translucency
- Stone layout and joint direction
- LED spacing and lighting uniformity
- Access to power supplies, drivers and wiring
- Substrate stability, flatness and cleanliness
- Edge and joint finishing
- The appearance of the stone with the lighting both on and off
Natural stone varies from sheet to sheet, and its translucency may also vary. Pre-layout is therefore important. It should not be assumed that every sheet will produce exactly the same brightness under identical lighting.
Typical Installation Process
- Construct the wall frame or lightbox according to the approved design and site dimensions.
- Install the LED lighting, power supplies and wiring.
- Test the lighting system and confirm that all electrical components operate correctly.
- Install the tempered glass or acrylic substrate.
- Check that the substrate is stable, flat and clean.
- Pre-layout the stone sheets and test their appearance under the proposed lighting.
- Keep the back of each stone sheet clean and free from dust.
- Apply a compatible transparent structural adhesive evenly, following the confirmed adhesive and installation method.
- Position and press the stone evenly onto the substrate, then complete the joint and edge finishing.
- Test the completed surface for brightness, colour and lighting uniformity.
The adhesive, substrate thickness and fixing method must be confirmed according to the project structure, panel size and site conditions. Electrical wiring and connections should be completed by appropriately qualified professionals in accordance with applicable local requirements.
Should a Backup Lighting Circuit Be Considered?
For hotels, commercial spaces and other projects requiring long operating periods, the design team may consider installing a backup LED circuit or reserving additional wiring during construction.
If the primary light source later fails, a planned backup system may reduce the need to remove the stone and substrate for repair.
The lightbox should also provide practical access to drivers, power supplies and wiring. These components should not be permanently enclosed without a maintenance strategy.
Why a Full Lighting Mock-Up Is Important
The final result is created by the interaction between the stone, LED system, lighting distance, substrate, diffusion layer and colour temperature.
Even when the same LEDs and installation distance are used, different stones may produce different levels of brightness, colour and visible texture.
Before approving a complete wall or large installation, the lighting mock-up should use:
- The selected project stone
- The proposed LED type
- The intended LED spacing
- The actual substrate material
- The proposed diffusion layer
- The selected colour temperature
The sample should be reviewed with the lighting switched both on and off. The final lightbox depth and installation structure can then be confirmed based on the approved result.
Translucent Natural Stone Sheets or LumiSlate?
Nalexible Translucent Natural Stone Sheets are supplied as the translucent stone material itself. They are suitable for projects where the architect, lighting consultant, fabricator or installer will design the lightbox, LED layout, glass, acrylic and other backlighting components separately.
LumiSlate Backlit Stone Panels combine real translucent natural stone with an integrated LED backlighting structure. They are intended for projects seeking a more complete finished panel and less on-site lightbox fabrication and coordination.
In simple terms:
Translucent Natural Stone Sheets: suitable for customised backlighting structures.
LumiSlate Backlit Stone Panels: a finished stone panel with an integrated LED backlighting system.
Applications for Backlit Natural Stone
With an appropriately designed lighting and installation system, translucent natural stone can be used for:
- Hotel lobby feature walls
- Reception areas
- Bars and counters
- Restaurant interiors
- Retail and commercial displays
- Ceiling features
- Custom furniture and cabinetry
- Architectural lighting surfaces
See how translucent stone works in completed projects:
- Indian Autumn Translucent Stone Panels in a Hotel Lobby
- Translucent Natural Stone in a Backlit Kaiseki Restaurant
Bringing Natural Stone and Architectural Lighting Together
Translucent natural stone is more than a decorative wall finish. With an appropriately designed LED layout, substrate, diffusion structure and colour temperature, it can become an illuminated architectural surface for hotels, restaurants, bars, reception areas, retail environments and other commercial interiors.
If your project will use translucent natural stone sheets, complete a material and lighting mock-up at an early stage. The design, lighting and installation teams should confirm the lightbox depth, substrate material, LED arrangement and future maintenance access before full installation.
If your project requires a more complete finished solution with less on-site lightbox fabrication, LED configuration and installation coordination, explore our LumiSlate Backlit Stone Panels. LumiSlate combines real translucent natural stone with an integrated LED backlighting structure in one finished panel.
